Turn table furnace



ABSOLUTEENERYSAVING,RELIABLEANDEFFICIENT MELTING AND HOLDING FURNACE FURNACE

DESCRIPTION

We offer the high quality Turn Table electric furnaces with Save energy and good for environment.
With Turn Table Furnace is unnecessary to transport the dangerous molten metal in the separate melting furnace.

KEY FEATURES

•    Standardization - easy to install
•    Improve thermal efficiency
•    Fast melting speed (20% faster)
•    Digital temperature controller, standard control On/Off
•    The 03 refractory block, freely radiating heater panels are arranged


PERFORMANCE DATA


Model

DTTF-E300NP

DTTF-E350NP

DTTF-E500NP

DTTF-E650NP

DTTF-E800NP

DTTF-E1000NP

Capacity (Kg/Ch)

300 x 2 (3)

350 x 2 (3)

500 x 2(3)

650 x 2(3)

800 x 2 (3)

1000 x 2(3)

Temperature (0C)

650C- 700 0C (750 0C)

Melting capacity (Kg/h)

90

110

150

180

210

250

Power (kw)

60 x 2(3)

65 x 2(3)

80 x2(3)

100x e2

120 x 2(3)

130x2(3)




HEATER

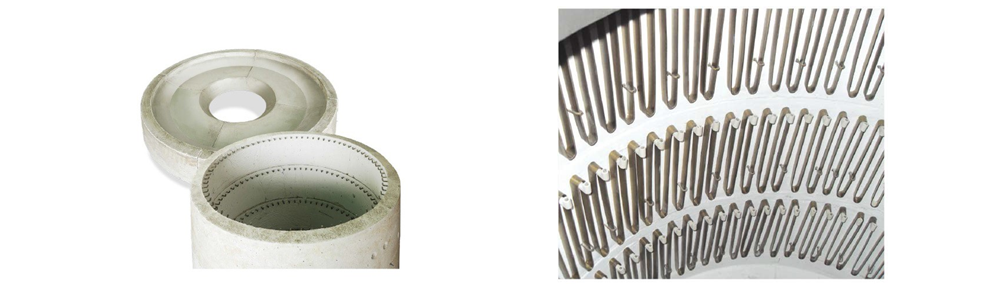

03 refractory heater block panels are arranged around the crucible and extend to the full depth of the furnace chamber.
Heaters are ready installed on Block with long life and easy to change

CHANGETOELEMENTPANEL

•    Element panel in Refractory Block
•    Safer than Usual Heater
•    Longer element panel performance life

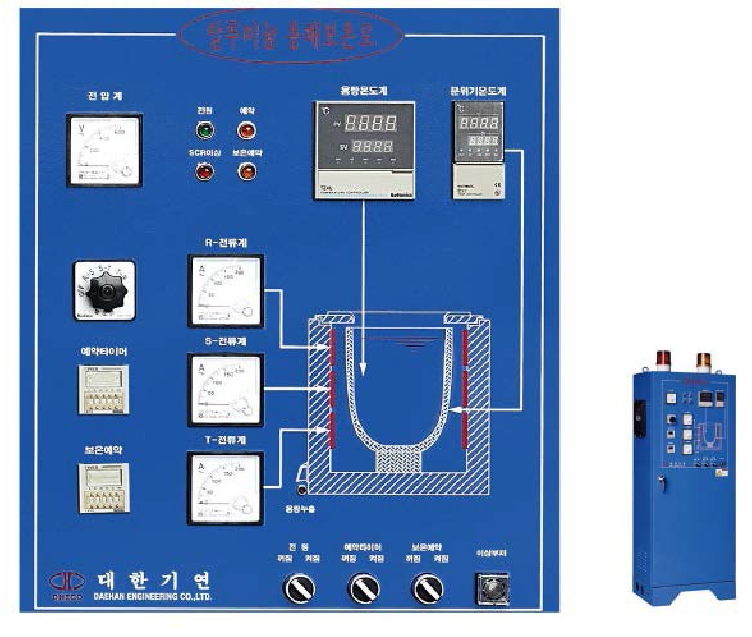

 CONTROLPANEL



NEWDESIGNCONTROLPANEL

•    Easy to control
•    Easy to know: Heater, Metal leakage, thermal couple
•    SCR: Accurate & improved metal temperature control

For more information, Pls contact us
